About FMR Workbench¶

FMR Workbench (FWB) is a lightweight web application for browsing and maintaining SDMX structures exposed by SDMX-compliant structure web services.

It uses a simplified version of the Fusion Metadata Registry (FMR) user interface. Workbench focuses on structural metadata management, while the full FMR also includes features such as data validation, data conversion, and administrative pages.

One important difference is configuration. FMR stores configuration in a database, while Workbench reads its configuration from a file. FWB has no database requirement.

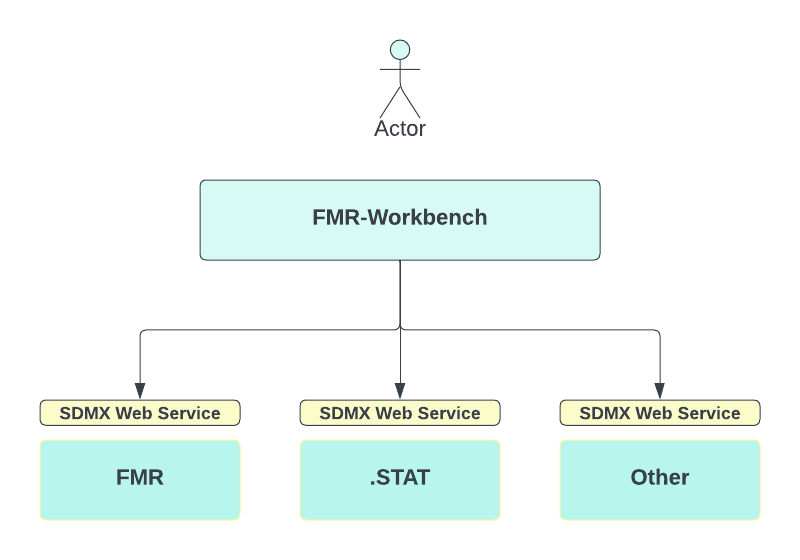

Workbench always operates against a selected Environment. An Environment is a named connection to a set of related SDMX web service endpoints for one service offering. These endpoints can include:

a query endpoint for retrieving structures
a persist endpoint for saving structures
a delete endpoint for removing structures

Users can switch between configured Environments in the UI. The selected Environment is stored per user session, so different users can work with different Environments at the same time.

Getting Started using Docker¶

Get Docker Desktop

At the operating system command prompt, run:

docker run --name fwb -p 8080:8080 sdmxio/fwb:2.6.0

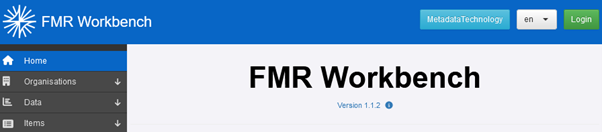

Browse http://localhost:8080
Modify the configuration file as described in the following sections

Configuration File¶

Workbench reads its settings from a configuration file named fwb_config.json.

An example configuration file is included with the software. Place the file in the following directory, creating the directory if needed:

<USER HOME>\MetadataTechnology\FusionRegistry

Example:

C:\Users\Matthew Nelson\MetadataTechnology\FusionRegistry

Configuration Layout¶

The configuration file has two sections:

Properties
Environments

{
  "Properties": { /* server properties go here */ },
  "Environments": [ /* environment definitions go here */ ]
}

Properties¶

Workbench requires one server property: the public URL of the Workbench application. This tells the application where it is hosted so it can build links correctly and redirect users to the right pages.

"Properties": {
  "server.url": "http://localhost:8080/fwb"
}

Use localhost only for local testing where the browser and Workbench are running on the same machine. For a shared or production deployment, set this to the externally accessible URL.

Environment Definitions¶

Each object in the Environments array defines one Environment that users can connect to. The query endpoint is required. The persist and delete endpoints are optional and are only needed when the Environment supports structure maintenance.

An Environment also defines how Workbench should authenticate to that service, if authentication is required.

Example:

{
  "id": "DOT_STAT",
  "name": "Dot Stat Test",
  "api": {
    "query": "https://nsi-demo-reset.siscc.org/rest",
    "persist": "https://nsi-demo-reset.siscc.org/rest/structure",
    "delete": "https://nsi-demo-stable.siscc.org/rest",
    "version": "1.5.0"
  },
  "agencies": ["SDMX", "METATECH"],
  "auth": "OIDC_PKCE",
  "locale": ["en", "fr"],
  "oidc": {
    "config": "https://keycloak.siscc.org/auth/realms/OECD/.well-known/openid-configuration",
    "clientId": "app"
  },
  "format": "mlv2.1"
}

The following properties are available:

Property	Description
id	Required Unique identifier for the Environment. It is also used by the REST API when switching Environments.
name	Required Display name shown to the user.
api	Required Contains the SDMX REST endpoints for this Environment.
api.query	Required Structure query web service endpoint.
api.persist	Optional Enables add and edit operations. Workbench sends HTTP `POST` requests to this URL.
api.delete	Optional Enables delete operations. Workbench sends HTTP `DELETE` requests to this URL.
api.version	Required Version of the SDMX REST API. Supported values are `1.5.0` and `2.0.0`.
api.timeout	Optional Maximum time, in seconds, to wait for API responses. Defaults to `120` seconds.
format	Optional Format used when Workbench serialises structures for save operations. Supported values are `mlv2.1`, `mlv3.0`, `jsonv1`, `jsonv2`, and `fusion`. Use `fusion` when connecting to another FMR instance and you need support for both SDMX and FMR-specific structures such as Publication Tables and Reporting Templates.
locale	Optional Locales offered in the locale selector beside the Login button.
agencies	Optional Available agencies to show when the Environment does not support Agency Scheme queries.
auth	Optional Authentication method for the Environment. Supported values are `NONE`, `BASIC`, `OIDC`, and `OIDC_PKCE`.
oidc.config	Optional URL of the OpenID Connect provider's well-known configuration.
oidc.clientId	Optional Client ID registered for Workbench with the OpenID Connect provider.
oidc.clientSecret	Optional Client secret for confidential clients. Not needed when using PKCE.
oidc.scope	Optional OAuth scopes to request during login, for example `"scope":"openid profile email"`.

Note

The format property only controls how structures are serialised when Workbench sends changes back to the connected Environment.

Workbench does not request a specific format when querying structures, for example by setting the HTTP Accept header. Instead, it accepts the Environment's default response and identifies the format by inspection.

Apache Tomcat Deployment Example¶

If you are using Apache Tomcat, place the WAR file in:

<tomcat>\webapps

The WAR filename becomes the application context path. For example, if the file is named fwb.war, the application URL will be:

http(s)://[server]:[port]/fwb

Start Tomcat using bin\startup.bat on Windows or bin\startup.sh on Unix-like systems. You can also run Tomcat as a Windows service.

When Tomcat starts, it expands the WAR file into a folder of the same name under <tomcat>\webapps.

With a default local Tomcat installation, Workbench would typically be available at:

http://localhost:8080/fwb

This assumes:

the browser is running on the same machine as Tomcat, so localhost is correct
Tomcat is using its default port 8080
the deployed file is named fwb.war, so the context path is /fwb

If the configuration file is present, valid JSON, and includes the required properties, this URL will open the Workbench UI.

Switching Environments¶

The header bar shows the currently connected Environment. Select it to open the environment switcher and connect to a different service.

By default, the connection is anonymous. In that mode you can browse structures, but maintenance features may not be available. If the Environment supports authentication, select Login after connecting.

Authentication¶

Workbench supports Basic Authentication and OpenID Connect (OIDC). The authentication method is defined per Environment in fwb_config.json.

Basic Authentication¶

When the Environment uses BASIC, selecting Login opens the Workbench login page. The user enters a username and password, which are stored in the current session and used when Workbench calls the target service.

Workbench validates the credentials by making an initial request to the target service. If the credentials are rejected, they are discarded.

Configuration example:

"auth": "BASIC"

OpenID Connect¶

When the Environment uses OIDC, selecting Login redirects the user to the configured identity provider. After successful authentication, the user returns to Workbench with a token, which is stored in the session and used for authenticated requests to the target service.

OIDC with PKCE¶

If your identity provider supports it, OIDC_PKCE is the preferred option. PKCE improves security by removing the need for a static client secret and helping protect the authorization code flow.

Configuration example:

"auth": "OIDC_PKCE",
"oidc": {
  "config": "https://keycloak.mydomain.org/auth/realms/myrealm/.well-known/openid-configuration",
  "clientId": "myapplication",
  "scope": "openid profile email"
}

Standard OIDC Authorization Code Flow¶

With OIDC, Workbench uses the standard authorization code flow. In this setup, Workbench sends the client_id and client_secret to the identity provider during the authentication process.

Configuration example:

"auth": "OIDC",
"oidc": {
  "config": "https://keycloak.mydomain.org/auth/realms/myrealm/.well-known/openid-configuration",
  "clientId": "myapplication",
  "clientSecret": "**********",
  "scope": "openid profile email"
}

Microsoft Entra ID¶

Microsoft Entra ID, previously Azure Active Directory, can be used as the OIDC identity provider. The standard authorization code flow is recommended.

Configuration example:

"auth": "OIDC",
"oidc": {
  "config": "https://login.microsoftonline.com/***************/v2.0/.well-known/openid-configuration",
  "clientId": "myapplication",
  "clientSecret": "**********",
  "scope": "openid profile email"
}

OIDC Troubleshooting¶

If authentication fails with:

invalid_client
Entra ID error AADSTS7000218
The request body must contain the following parameter: 'client_assertion' or 'client_secret'

then the identity provider is not configured for PKCE. In that case, use standard OIDC authentication instead of OIDC_PKCE.

Disabling Authentication¶

To disable authentication for an Environment, set:

"auth": "NONE"

Browsing and Exporting Structures¶

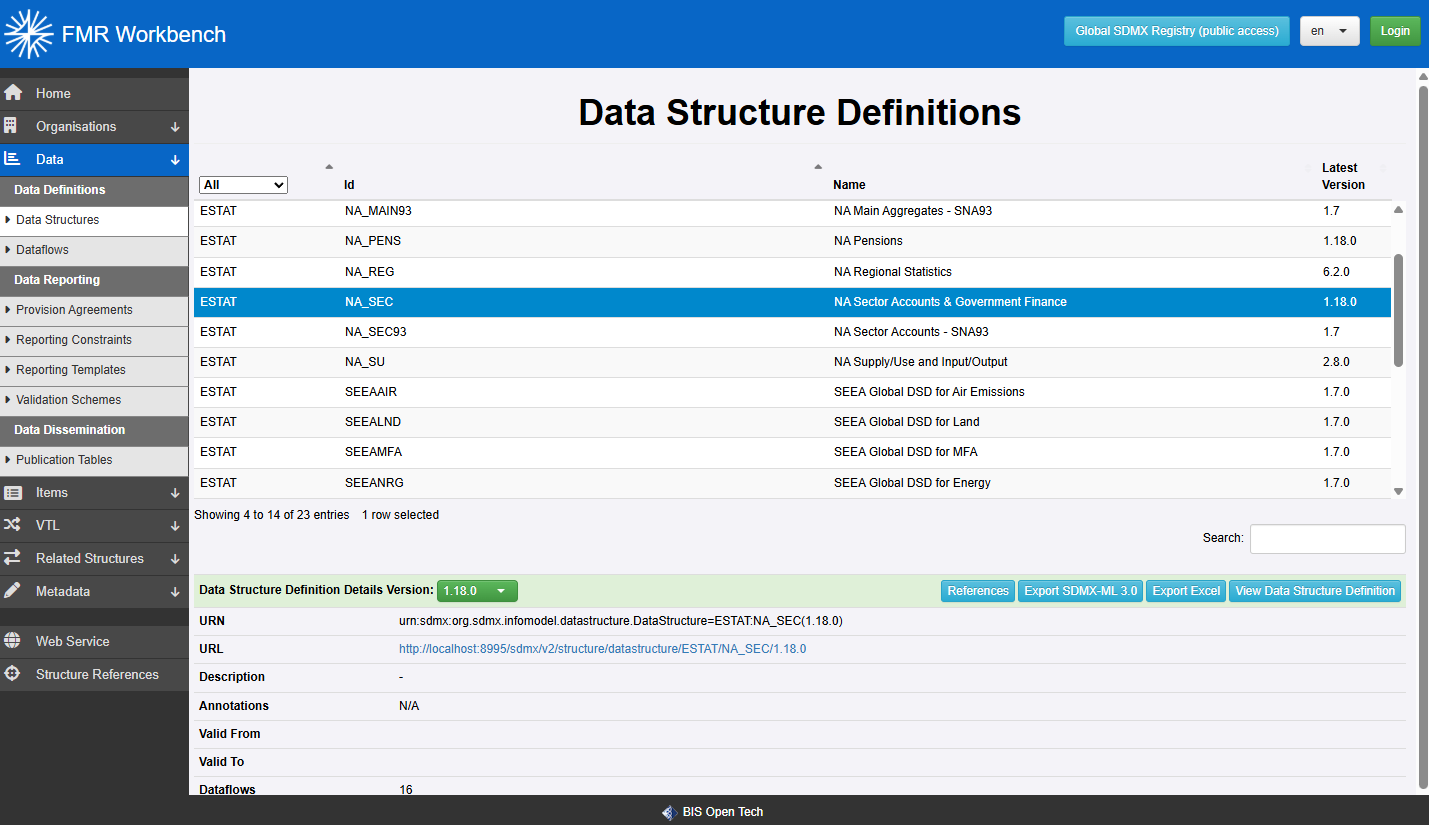

Workbench displays structures using the same navigation model as FMR. For example, selecting Codelists in the sidebar opens the Codelist page and retrieves the available Codelists from the connected Environment.

When a user browses structures, Workbench forwards the relevant SDMX query to the connected service, reads the response, and then can return that content in any format supported by Workbench. This means users can export structures in formats such as Excel, SDMX, or JSON even if the connected service does not natively provide all of those formats.

You can also link directly to Workbench with a preselected Environment by adding the env query parameter:

https://fwb.sdmxcloud.org/?env=DOT_STAT_STABLE

You can link to a specific structure page in the same way:

https://fwb.sdmxcloud.org/items/conceptscheme.html?urn=urn:sdmx:org.sdmx.infomodel.conceptscheme.ConceptScheme=IMF:CS_BOP(1.11)&env=DOT_STAT_STABLE

If the linked page is a protected resource, Workbench redirects the user to log in first if needed.

Creating and Updating Structures¶

After logging in to an Environment that supports maintenance, users can upload structures from the Workbench home page or create and edit structures through the standard UI wizards.

Workbench shares the same UI components as FMR, but the connected service may not support every feature exposed by that UI. For example, Workbench may allow a user to build an SDMX 3.0 DSD with multiple measures, but the target service might reject that save request.

Workbench can import structures in any format it supports, including Excel. When saving to the target service, it converts the submitted structures into a format supported by the connected Environment.

SDMX Web Service Behaviour¶

Workbench exposes the same web service entry points as FMR, but these endpoints should not be treated as guaranteed fully compliant SDMX services.

Workbench forwards requests to the currently connected service and may adjust queries to improve compatibility with the target system. If the target service reports an error, Workbench may return a response equivalent to "no structures found".

For production integrations, it is recommended to use the target service's SDMX web services directly rather than relying on Workbench as an API layer.

Troubleshooting¶

If the Workbench home page does not load, first check the Apache Tomcat logs. Workbench also writes two application-specific log files:

FMRWorkbench.log contains all Workbench logging at INFO level and above.
FMRWorkbenchErrors.log contains warnings and errors only.

To change the logging level, edit:

<tomcat home>\webapps\fwb\WEB-INF\classes\logback.xml
